Introduction

Wiki for storing knowledge on various subjects

Daily Websites

Websites that I found helpful to browse frequently:

Daily

Weekly

Monthly

References

Resources/tools that are good to review when needed for things that I specialize on. Also personal notes and summary of cool articles.

Embedded Websites

General

  • Embedded Template Library: Actually has a bunch of data structure and algorithms, also some extra stuffs like state machine.

CI/Testing

Kernel Hacking

Tooling

  • Segger Ozone: Pretty decent visual debugger. Basic features are free.
  • Segger RTT: Really fast printing even faster than SWO, even support color printing and has nice client application to view the printing.
  • Segger SystemView: Can be used with any JLink(since RTT can be used with any JLink), note that this thing seems buggy, check our own post.

Others

BLE

Notes about the Protocols

  • All device must advertise using the 1Mbps PHY for compatibility, devices that can use the 2Mbps PHY can use the 1M to jump to 2M.
  • You can not have GATT communication on 2M if you didn't advertise on it.
  • MTU affects whether you need to do long write while data length affect how efficient the lowest level send out packet, a big MTU can be inefficient if you have to split it too much although big MTU will giver upper layer better ergonomics
  • While ATT is the most commonly used protocol to talk, other high level protocols such as CoC can be used that improve throughput for other applications
  • Extended advertising may not be implemented even though devices implement BLE 5

Notes about Android API

  • Android by default only uses 1M PHY, must set legacy mode to false to talk with 2M.
  • The API itself is not that bad, should probably use it since even popular third-party implementation can be spotty

Helpful Stuffs

  • Device BLE Capability Database: Good if you have a SIG account, save a lot of guessing about your phone's BLE capability.
  • NRFConnect App: Pretty good for testing both client and server. Also allow you to discover some BLE capabilities of your phone.

C++

Learning Resources

Tooling

Improving Compile Time

Software Architecture

Mono Repo vs Poly Repo

Mono repo should apply for most cases since they reduce the amount of work to keep library in sync and also make it easier to work on issues that span multiple libraries

Poly repo is used when you have to break a piece out because multiple places are using them

Mono and poly are not exclusive, you can have a repo that can multiple libraries that are meant to be used together

Estimation

This Embedded Artistry articles demonstrates approaches to predicting. There are various rules but the good ones seem to avoid the mob effects and the come-first mentality where the first estimation is repeated by everyone else. They usually accomplish these two things by making sure everyone's estimation is taken into account anonymously and at the same time.

Designing Abstractions

As illustrated in this article, lack of abstraction is almost as prevalent as premature abstraction, when we find ourselves bolting more stuffs on the old code, it's time to rethink the design. Have patience before refactoring to avoid over abstraction.

Side Topics

For things that I don't specialize on but is helpful to know.

FPGA

Terms That Is Forgotten A Lot

  • Combinatorial Logic: Where two or more input defines one output. This can be like addition where c = a + b.

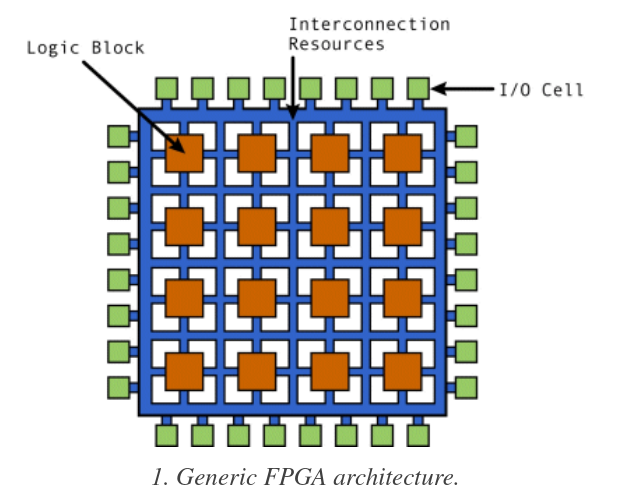

FPGA Components

FPGAs are made of blocks and connected together by programmable routes.

  • Logic block: Contains logic components like multiplexer(for routing between other components), flip flops(storage based on clock signal), RAM(for look up table, aka truth table).
  • IO Block: Connect logic blocks with external components. Handle things like like slew rate, active high/low, pull-ups, pull-down, etc.
  • Interconnect: The programmable routes(in the form of matrix), there are short lines for blocks closed together and long lines for blocks far from each other. There are global clock lines that are connected to the logic block clock lines to distribute clock. They are the FPGA fabric.

Types of Cores:

  • Soft Cores: Mainly implemented using HDL code.
  • Hard Cores: Actual physical cores surrounded by programmable logic on the chip.
  • IP Cores: Soft Cores designed by other people for you to use. These things tend to have been characterized(ie information regarding their speed and power consumption is known)
  • Specialized Cores like DSP Cores, Processor Cores, Analog Cores

How Is FPGA Programmed

There are 3 methods for programming FPGA(aka saving whether to have 1 or 0 at a certain transistor using bitstream), they are all storage technology:

  • SRAM: Most common right now but more error prone(due to being volatile) and higher power consumption. Require external device to program the RAM on power-up.
  • Antifuse: Normally not connect, large current causes connect. Doesn't need external programmers as the design is burned onto the fuse itself, however, the fabrication yield is low.
  • Flash: Combine advantage of the two above, might be more common in the future.

The flow from your code to the bare-metal go like this, note that at each steps, there are a different set of optimization that is performed:

  • HDL goes through synthesis to RTL(which is an abstraction that uses combinatorial data path and register(but in more abstract term like a storage element) to describe the design, very abstract).
  • RTL goes to gate level(uses actual gates like OR, AND and registers(actual makeup of register using flip-flops and not simply just an abstraction for a storage element)). Note that there are two types of gate levels:
    • Logical Gate Level: Contain theoretical gates like AND, OR, NOT and registers.
    • Physical Gate Level: Contains only gates that are available on the FPGA.
  • From the gate level the place-and-route program connects things together on the actual chip. Placing determines where the components(gates should be) and route decide how to connect them.

HDL

SystemVerilog is a superset of Verilog. And like C++ each of them has version labeled by year(like Verilog-2005), it's helpful to know this when seeing synthesizer says which standard do they support.

Note that Verilog can be synthesizable or not, synthesizable means that it can map directly to hardware. The non-synthesizable stuffs are for test benches.

HLS

HLS are high level languages like C and C++ and get compiled down to RTL. It is a productivity tools.

Resources

General

VHDL is apparently way harder to parse than Verilog so that's why open source tooling is focused on Verilog right now, there are efforts to get VHDL working though.

Xilinx

Xilinx Vitis: Goes from languages like C++, Python to gate level. This is based on Xilinx SDx which compiles C++ to hardware code.

UML

UML is a modeling language, it's helpful for making simple charts and diagrams to document and visualize design but don't get too deep on it.

PlantUML

PlantUML allows you to describe your UML diagram using text so it's pretty convenient to check it in to vcs. There is also a vscode extension that is pretty good. The syntax is fairly simple.

UML state machine

The Wikipedia page on UML state machine is a really good reference

Below are common notations for quick reference, note that the dashed lines are for comments.

A basic UML diagram, pay attention to the choice state and the event / action notation:

Hierarchical State Machine, pay attention to the entry and exit function

PCB and Mechanical Design

Mechanical

  • Surveys of various free Mechanical CAD:
    • Fusion360: The online version is super bare-bone, recommend setting up a VM with GPU passthrough, free for hobbyist use, the one to use.
    • FreeCAD: FOSS but seems fairly immature and has weird workflow.
    • OnShape: Very similar to Solidworks and also fully online, not sure how stable it is though.

PCB

  • Surveys of various free Electrical CAD:
    • KiCAD: FOSS and got some pretty big investments, the one to use.
    • Eagle: Heard their pricing tiers have gotten really complicated so the free tier is even more stripped down, but probably use it if designing enclosure in conjunction with Fusion360.
    • CircuitStudio and Upverter: Both fully online CAD by Altium, they honestly kind of compete against each other. Show that Altium strategy is lacking focus.
  • KiCad Push and Shove Router
  • CadLab for visual diff on PCB

Concepts

Current Return Path

PCB CheckList

PCB Milling

While this is certainly convenient and capable of SMD, milling tends to be a mess and FR4(PCB material) contains fiberclass that while not cancerous is also not good for your lungs so milling PCB requires a fair amount of safety equipment and space. The toolchain flow is also complicated and not very polished, double sided PCB is a pain. Recommend to not do this.

Both

Virtualization

Lots of things moving in this space right now, two tools that stand out:

  • Vagrant: good for local development, can spin up a vm similar to Virtualbox but without the hassle. Used a lot for devops testings like testing ansible scripts.
  • Docker: good for deployment and local development as well, probably use this most of the time.

Hard to run virtualized instance on the server of your own unless the server supports nested virtualization(which is usually expensive) or you rent your own bare metal server(there are some not as famous but cheap vendors for this).

GPU Passthrough for Windows Guest

Moved here

3D Printing

Got an Ender 3 in May 2020 because it's one of the cheapest while also having one of the biggest communities and big print bed.

Mods and Enhancements

Completed

Planned

  • Replacing the electronics and extruder fan and maybe the fan ducts: With the SKR upgrade, the fan is now the loudest component. The fan size is 4010, but a 4020 would still work, this is a good one(or any that is 24V, ~7 CFM, ~20db), remember to order 2 next time buying at Digikey.

Situational

  • Aluminum Extruder: Lots of people swear by this, but it others say that with the filament guide, this shouldn't happen.
  • Replace printbed: Comparision Video, doesn't seem necessary now as the default print bed does its job well. Also check out PEI Sheet.
  • Change power supply: This one is compatible, if upgrading the PSU, should probably change the fan too(guide here). The fan runs at 24V so need either a power converter or a fan that supports that natively. Doesn't seem necessary for now but the PSU is a pretty bad one so if safety is a concern then this is probably essential.
  • Replacing part fan: Blower style, aka radial style. The fan size is 5015, most of the fans on Amazon is pretty bad and the blower doesn't seem to make a lot of noise so if the machine is still loud after the extruder and electronics fans are replaced then do this.

Calibrations

This page is an excellent tool for visual diagnostic. Although it may not always be accurate.

This video has a pretty thorough list of things to check.

Belt Tensioning VERY IMPORTANT.

For bed leveling, use the corner leveling(using the knobs) and then manual bed leveling built into Marlin, note that the manual bed leveling offset should be small(like in 0.5 range), if it's too big, do corner leveling again. For manual bed leveling, stops when it's barely tight enough to crumb the paper, meaning not too light pressure but no too heavy either.

Calibrations PER MATERIAL:

  • Temperature: Do temperature tower when other issues are already sorted out.
  • Flow rate(commonly called extrusion multiplier)

Good video about not calibrating too many things

List of good test prints:

  • Fast Stringing Test: Good for fast test, but some some strings will still remain. The best profile so far still has string on top but they are easy to remove.
  • More Commonly Used Stringing Test: Should use this for ease of comparison with people like youtubers. Proper config should get rid of all string on this one. Can be used for rapid testing if printing partially.
  • Cat Print: A more elaborate test.
  • Poly Peal Tower: A tough test that is more thorough than Cat.
  • For Testing Support
  • All-in-one Test: Take awhile to print so probably do this last.

Settings

Printer

NOTE: The SKR Mini has some kind of bug, even if the LCD shows Stealthchop is enabled, use M569 to make sure it's in Stealthchop, currently, the jumper on the board is on SpreadCycle by default and Stealthchop is enabled using firmware.

Printer settings are either enabled through the LCD and saved into EEPROM or enabled during compilation.

EEPROM:

Compile Time:

  • Disable Hybrid Threshold: Mostly because the z axis moves pretty loudly, this is probably a bug so check back later.

Cura

The profiles for each material are stored in the same directory as this file. However, variation of the profile is probably necessary sometimes. General guidelines:

  • Infill > 50% for things that will be manhandled. Around 20% is good for things that is usually not touched.
  • Layer height < 0.2 for things that need to look pretty.
  • Wall count of 7 for things that need to be strong.

Start and End GCODE is in this folder.

Printing Screws

It's totally doable to print screws on the Ender 3(provided that only one screw is being printed at a time to avoid stringing and slow speed and low layer height), however, the screw should only be used to non-important stuffs since they are pretty flimsy(less so if they are like M8), the scad file for screw is in this folder.

Materials

Hatchbox PLA is pretty reliable and prints at low temperature.

ESUN PLA+ require higher temperature to print fast. Texture doesn't seem to be as good as Hatchbox but the temperature resistance might be better.

Overture PETG is pretty good, however, NEED TO REMOVE PRINT WHEN STILL HOT, otherwise it will take a chunk of the buildplate with it, although the buildplate is still usable even when missing a chunk in the middle. Should only be used when needed though, it prints pretty slow

Server Firmware

There is a big open source movement going on with players like Google and Facebook pushing for open source BIOS for projects like LinuxBoot(uses Linux as later stage bootloader). The goal of having open source firmware for this is to increase security as well as extensibility.

Open Computer Project Website has a lot of cool specs that big companies design and manufacturers will follow that specs to make devices. Good for checking out why things the way they were

GPU Programming

This is a pretty interesting area, and it seems to be fairly in demand(just check r/cpp job board, like 70% of the jobs involve CUDA or openCL). However, it also requires advanced degree, lots of math, and years of experience, thus, it's probably best to focus on other areas unless there is a significant change in the field.

It was mentioned that the thing that takes the year of experience is not the CUDA API itself but the understanding of its architecture and the understanding of the problem in order to make the solution run efficiently on Nvidia hardware.

Cooking

Most of the recipes use the instant pot. The saute function is usable although the shape and ergonomics of the pot make oil handling more difficult

Tested Recipes

  • Beef Stew
  • Spaghetti: Pretty simple, put the meatballs at the bottom and the pasta on top, it's okay if the pasta touch the bottom of the instant pot. Use a can of tomato paste for each batch and make sure they are diluted, put enough water so that it's near the top of the meatball. High pressure for about 10 minutes
  • Sweet and Spicy Brisket
  • Tacos

Unexplored Things

Things that I still need to check out on

Embedded Systems

Uncategorized

Things To Check Back Later

List things like tools that are not mature enough now but has potential for future use

Ideas

List ideas that have been thought of.

Viable Ideas

Bare Bone Ideas

Ideas that haven't gone through preliminary research:

Learn Rust by writing a command line application for JLink RTT Viewer

JLink RTT Viewer is a debugging technology by Segger that is touted to be faster than most of the market.

The easiest way would have been to use the JLink SDK which contains client code but it costs a lot of money. The most viable way then is to use telnet like JLinkRTTClient does(although it can only see channel 0).

To have the telnet server running, would need the JLinkRTTViewer to run, but preferably it should run without a GUI. To do that:

# need to install Xvfb, an x-window buffer implementation
Xvfb :18& # create display 18, there maybe some warnings but that's okay
export DISPLAY=:18 # change display being used to 18

JLinkRTTViewer --autoconnect& # autoconnect to skip the selection screen
telnet localhost 19021

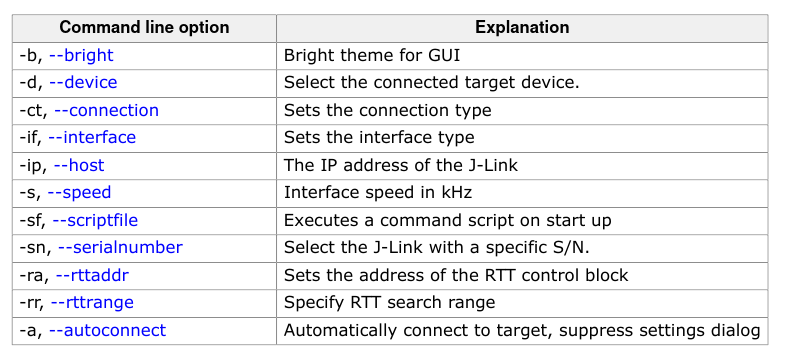

JLinkRTTViewer command line option:

The JLinkRTTViewer's feature set is pretty bare-bone, it allows for viewing(with color support), sending data and logging to file. One good idea is to incorporate it with other apps like:

  • JLinkSWOViewer
  • JLinkConfig
  • JLinkExe

Nonviable Ideas

Ideas that have gone through research and judged to not be feasible, documented here for future reference.

Good Open Source Contributions

Places or things that seem conductive to external contribution and fits my expertise

Embedded Systems

Others

  • VsCode
  • C++ paper reference implementation

Common Coding Decisions

This section details small decisions when coding that I usually make. They are noted here so I can look up later for consistency

Rules for All Languages

Comments Across Languages

# This is the correct casing most of the time

# FOR EMPHASIS

# never this casing

Markdown

Titles Naming Rules

 <!-- good -->
## This Is A Title

<!-- bad -->
## This is a title

End of Line Dot

<!-- good -->
Line here.

<!-- bad -->
Line here

cmake

Naming Conventions

This Guide

PROJECT(MyProject C CXX) # CamelCase project name

_some_var # internal variable

SOME_VAR # global variable from other files

LIST(...) # upper case for cmake commands

# custom function written by users
function(func_name func_var)
    # function body
endfunction()

# name the exe path variable by appending _exe
find_program(nrfjprog_exe NAMES nrfjprog)

Order of variable in function call

# good
SET(var_name "${platform_indepdendent_c_and_cpp_flags} -std=c++17")

# bad
SET(var_name "-std=c++17 ${platform_indepdendent_c_and_cpp_flags}")

Rationale: Mostly for consistency sake

cpp

Naming Conventions

Google CPP Style Guide

One good rule is to not abbreviate unless wikipedia abbreviate so for example:

// good
class PeerManager {};

// bad
class PM {};

Doxygen Comments

/**
 * @brief This is brief
 *
 * @param param Talk about param
 * @return false Talk about return false
 */

Rationale: Consistency and also easier to read

Constant Array

This applies even in case where we have to const_cast the return type of std::array.data() to not be const to fit the signature, just make sure the pointer is actually to const instead of the API just forgetting to have const

// good
constexpr std::array<uint16_t, 2> TIMETABLE_SERVICE_UUID_BASE{ 0xBC, 0x8A };

// bad
#define TIMETABLE_SERVICE_UUID_BASE { 0xBC, 0x8A }

Rationale: Don't use macros, also the array has a lot more convenient functions

Python

Naming Conventions

Pep8. Summary below

# also applies to exceptions
def ClassName():
    @classmethod
    def class_method(cls):

    def instance_public_method(self):

    def _private_method(self):

    class_variable = 5

    def __init__(self):
        self._instance_variable = 4

# type variable
from typing import TypeVar

# standalone function
def func_name(param_1):
    # ...

# constants
MAX_OVERFLOW = 5

Misc

Video Games

To Play When Bored

Below is a list of games that is fun to play when bored, they are determined through experience, a lot of games can be gotten temporarily really cheap through Origin Access:

  • Red Alert 3: Lots of cool units and the control ergonomics is good.

Not to Play

These are games that at first seem interesting but has some quirk that can ruin the experience:

  • Battle Realms: Controlling units can be a pain, quite some work to divide troops between offense and defense. Doesn't work on the Windows 10 Qemu VM.
  • Red Alert 2: The age really makes the game seem pretty sluggish to run.
  • Command and Conquer General Zero Hour: Cool units but the path finding is pretty bad, leading to needing a lot of micromanaging to make units move correctly.
