UML

UML is a modeling language, it's helpful for making simple charts and diagrams to document and visualize design but don't get too deep on it.

PlantUML

PlantUML allows you to describe your UML diagram using text so it's pretty convenient to check it in to vcs. There is also a vscode extension that is pretty good. The syntax is fairly simple.

UML state machine

The Wikipedia page on UML state machine is a really good reference

Below are common notations for quick reference, note that the dashed lines are for comments.

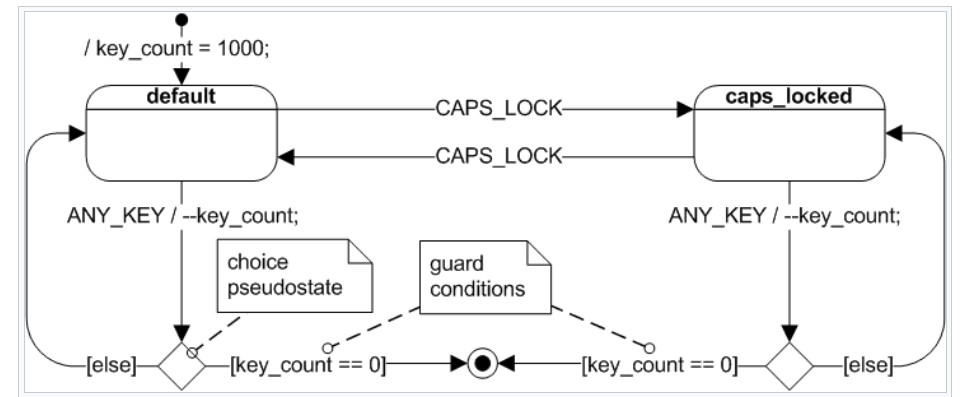

A basic UML diagram, pay attention to the choice state and the event / action notation:

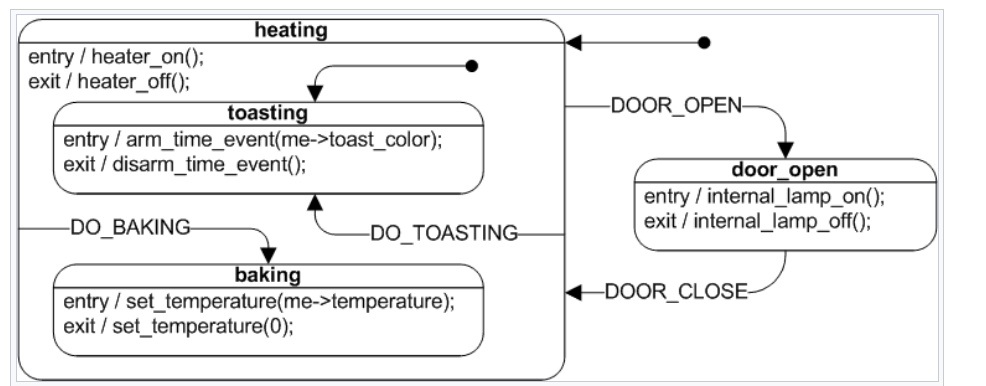

Hierarchical State Machine, pay attention to the entry and exit function
